Not a bolt-on nozzle upgrade but a rebuild kit: the head comes on its carriage, and the larger set adds both mirror mounts, for K40s whose moving optics are worn, bent or missing.

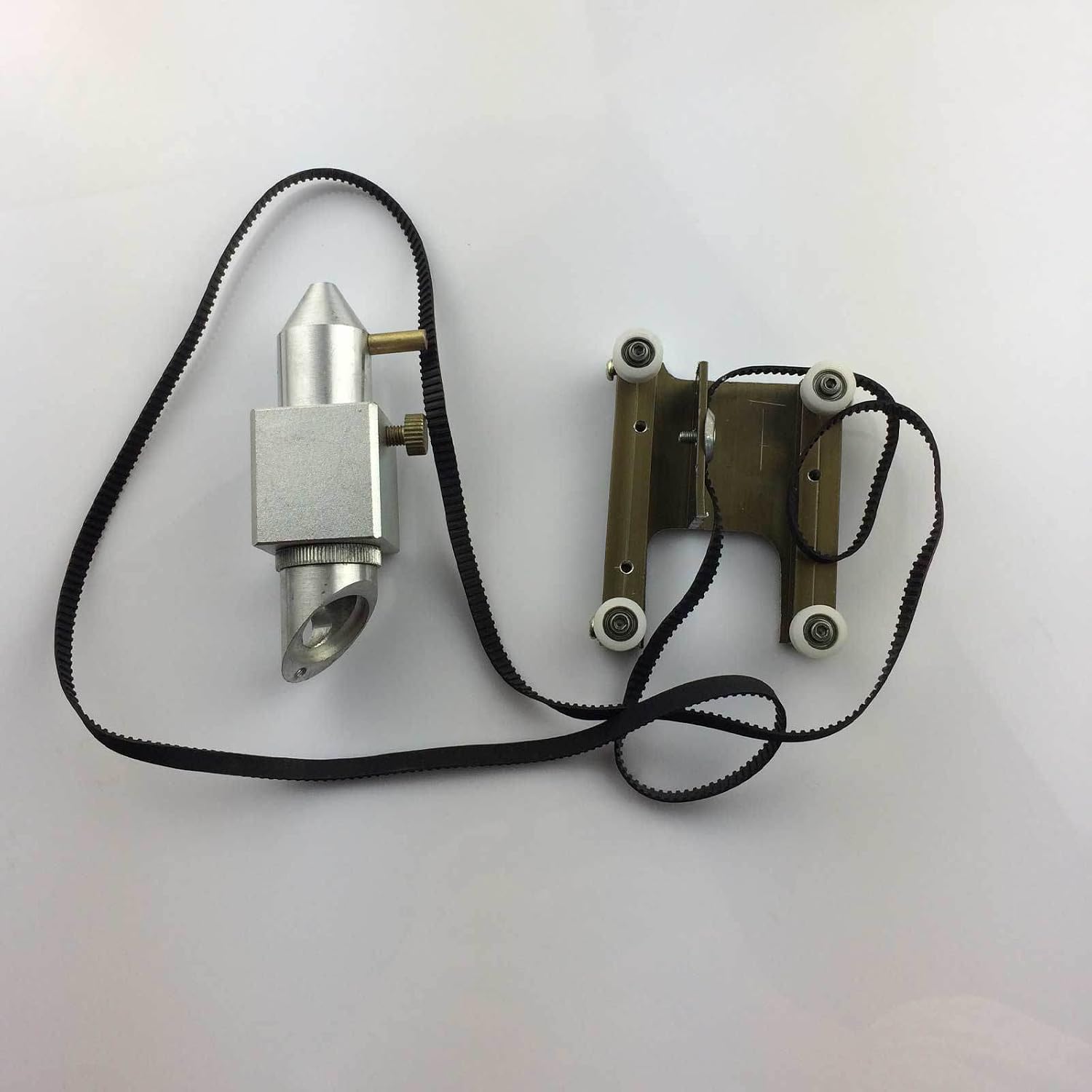

Most K40 heads assume your carriage is fine and replace only the part that holds the lens. CNCOLETECH goes a level deeper. Its kit brings the head already on its carriage, and the full set adds two mirror mounts, so the whole moving optical assembly comes from one maker at one geometry.
That matters when the problem is not the head. A K40 that has hit its frame at speed, had a belt snap, or sat through a fire can come out with a twisted carriage plate. Every mirror downstream then points slightly wrong, and no amount of screw-turning at the mounts brings the beam back to the centre in all four corners.
Neither kit includes mirrors or a lens. You move your existing optics across, or buy fresh ones at the same time. CNCOLETECH names the focal length but not the lens or mirror diameter, so measure your optics before ordering and confirm the size with CNCOLETECH if you are unsure.
There is a second buyer for this kit: the builder. If you are putting a K40-style machine together from a bare frame, or reviving a gutted one, a matched head, carriage and mount set saves you from mixing parts from three makers that were never meant to line up.
| Spec | Value |
|---|---|
| Brand | CNCOLETECH |
| Manufacturer | COLE |
| Full set part number | LH-K40-HRC |
| Head kit part number | LH-K40-HC |
| Designed for | K40 and K40 DIY builds |
| Focal length | 50.8mm |
| Full set contents | Laser head, 2 mirror mounts, carriages |
| Head kit contents | Laser head with carriage |
| Mirrors included | No |
| Focus lens included | No |
| Material | Aluminium |
| Package quantity | 1 set |
| Air assist | Not specified by CNCOLETECH |
A rebuild kit is the right call only when the carriage is the fault. Spend twenty minutes proving that first; alignment problems and worn optics produce similar symptoms and cost far less to fix.
| Symptom | Likely cause | First fix |
|---|---|---|
| Spot drifts between near and far corners | Mirror alignment | Re-align from mirror one |
| Weak cuts everywhere, spot centred | Dirty or pitted optics, tube current | Clean or replace optics |
| Head wobbles or rocks by hand | Loose or worn carriage wheels | Tighten eccentric nuts, check wheels |
| Mount cannot reach centre in any setting | Bent carriage or head plate | Replace the carriage |
With the machine unplugged, grip the head and try to rock it. Then lay a steel rule across the carriage plate and look for light underneath. A plate that rocks on the rule, or a mount that sits visibly tilted even at the end of its adjustment, points to bent metal.
Only then order the kit. A new carriage on a gantry that is out of square will wander just the same.
Check the wheels while you are in there. Worn or flat-spotted carriage wheels let the head rock under acceleration, which shows up as wavy edges on curves rather than a lost beam. New wheels and a snug eccentric nut sometimes save the old carriage.
Fitting a carriage set is a bigger job than a head swap. Plan a clear bench, a camera for reference photos, and an evening. Unplug the machine before the lid goes up, and leave it unplugged until the last screw is in.
Check the gantry for square once the belt is back on. Push the gantry gently against the front frame stops on both sides; if one side touches first, adjust the belt tooth position until both touch together. A gantry out of square steers the beam away from centre as the head travels.
Finish with a ramp test to find focus with a 50.8mm lens. The head height on a rebuild may differ from stock, so do not trust your old focus gauge.
Do the first real cut at low speed on cheap card. Watch the head travel the full bed, listen for rubbing, and confirm the lens cone and any nozzle clear the clamp plate. Only then move on to plywood or acrylic.
How far the damage reaches picks between the two CNCOLETECH kits. If only the moving head and its carriage are suspect, the head kit is enough. If mirror mounts are cracked, stripped or seized, the full set replaces them in one go.
For machines that also need new optics, compare against kits that include them. Cloudray sells a K Series whole set with a D20 FL50.8 lens and molybdenum mirrors, and FONLAND sells head-and-mount sets with adjustable lens tubes. Both add optics or height adjustment that CNCOLETECH leaves to you.
Tick these off with the lid open:
Weigh a rebuild against cheaper fixes in the K40 upgrade order first.
A rebuild is also a good moment to clean the rails and replace a stretched belt. Parts that have already been apart are cheap to refresh now and tedious to reach again later.
No. Both kits come without optics. Move your mirrors and lens across or buy new ones.
CNCOLETECH does not specify an air nozzle. If you want air assist, plan an add-on nozzle or choose an air-assist head.
50.8mm, the standard K40 focal length.
When the carriage or head plate is bent or worn, so the beam cannot be centred at every corner even after a careful alignment.
